Body-Solid DLATSF Lat Pulldown & Mid Row

The Body-Solid DLATSF Pro Dual Lat Pulldown with Mid Row Machine combines two of the most-used back exercises into a single commercial station, with a no-cable-change design that lets users flow directly from lat-pulldown work into seated-row work without re-routing cables or swapping attachments.

Key Features and Benefits

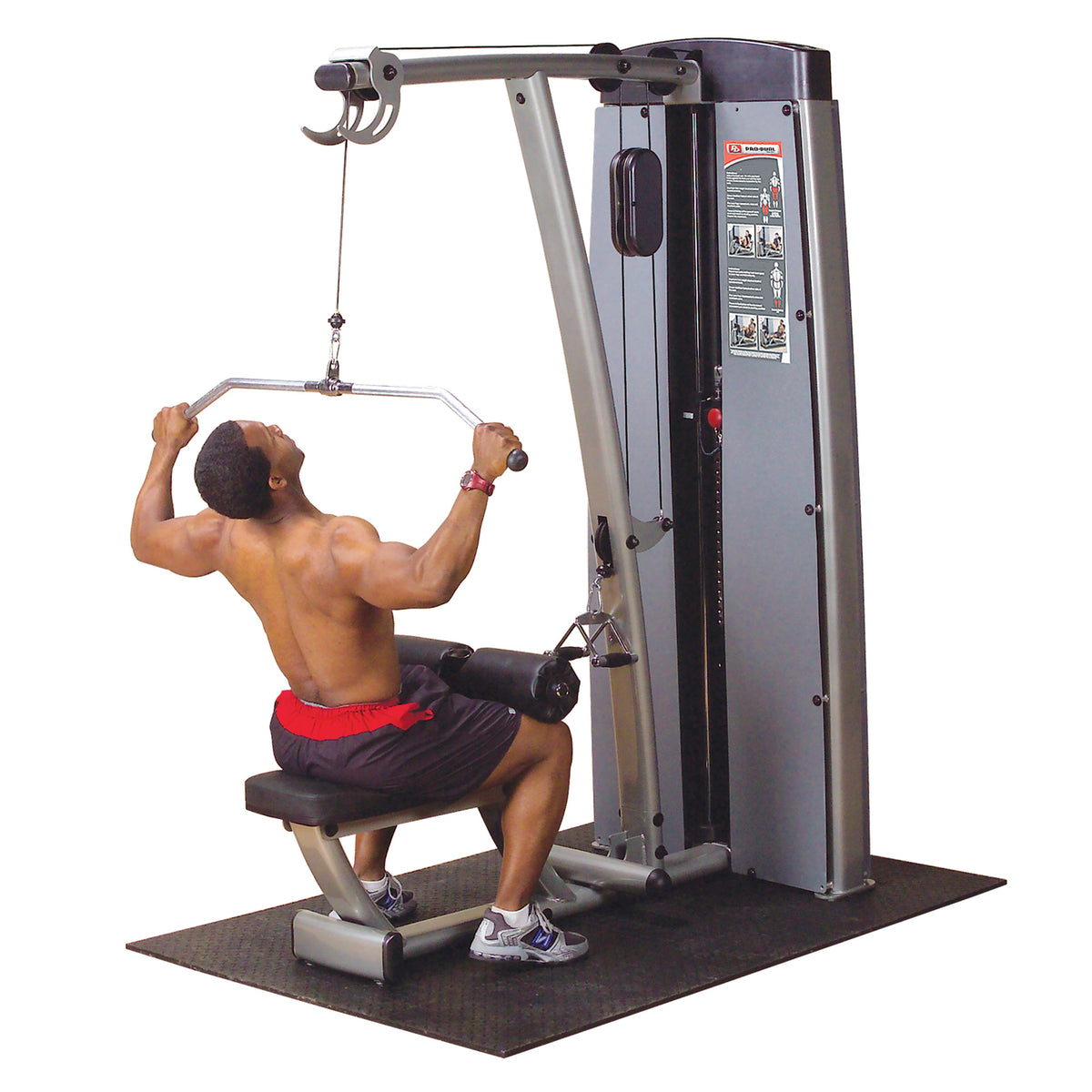

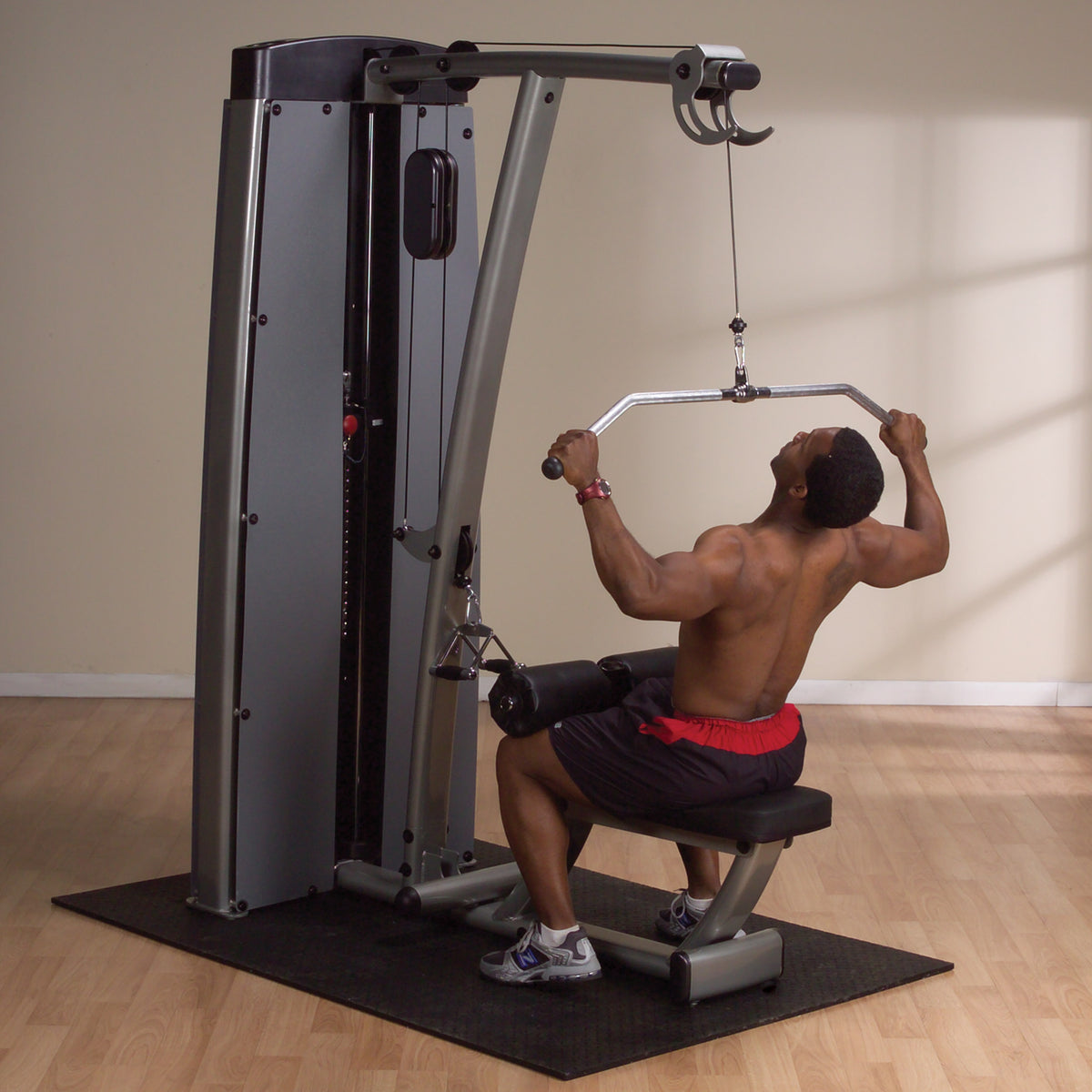

The high pulley is positioned directly overhead — not offset forward — which keeps the resistance vector aligned with the lats and shoulders for proper back and shoulder isolation through the full pull-down rep. The extra-long pull-down bar accommodates wide, medium, and narrow handgrip positions on the same machine, so the same station handles wide-grip lat pulls for back width as well as narrow-grip variations targeting biceps and the lower lats.

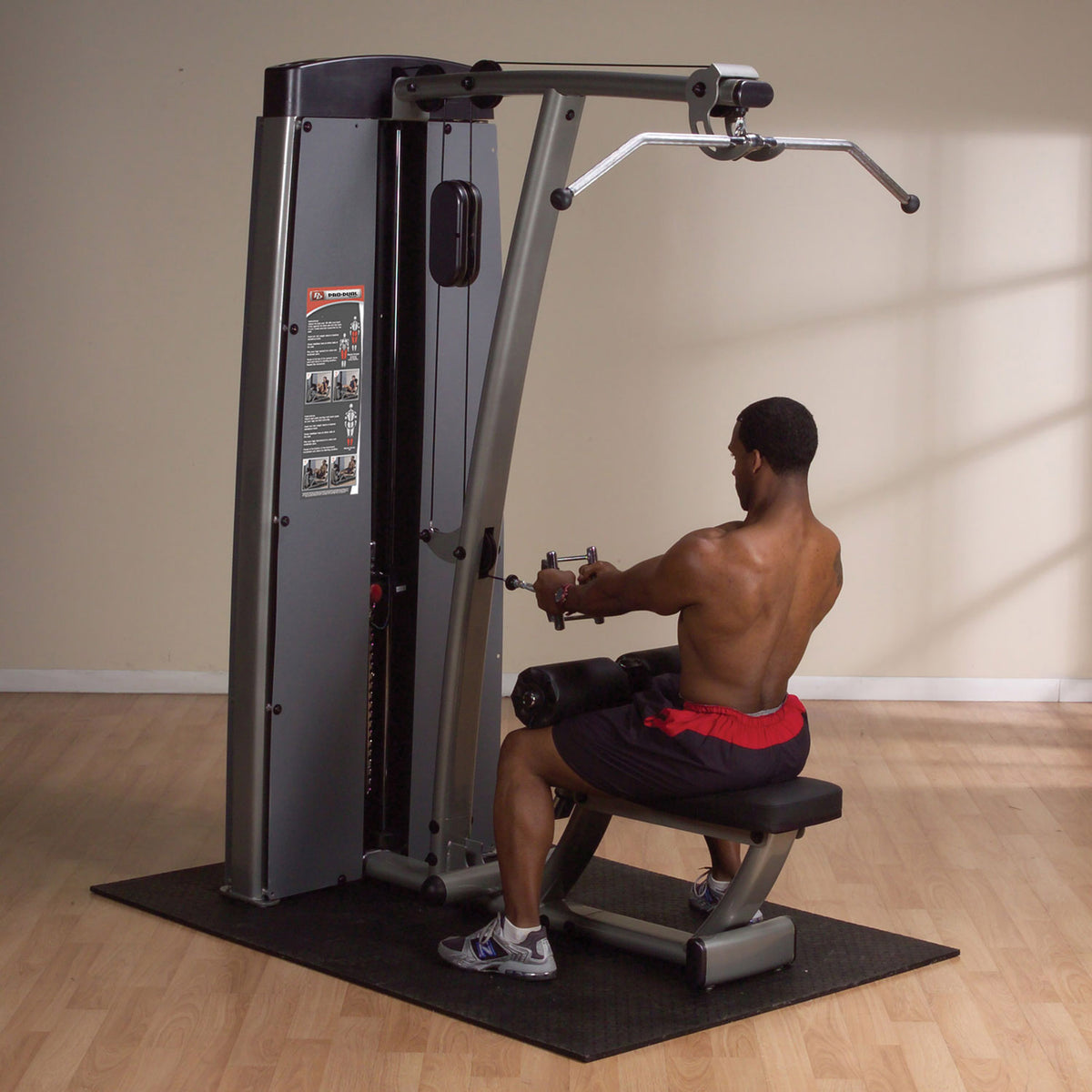

The no-cable-change design is the practical feature that makes this a dual-function machine in real use, not just on paper. Without re-routing cables, users can switch from long-pull lat work to seated-row work in seconds — important for commercial gyms where users are moving between exercises in a programmed circuit, and for serious home setups where the same workout flows from vertical pull to horizontal pull without setup overhead. Adjustable hold-down pads provide the stability needed to load beyond bodyweight on lat work, which is the difference between an isolated back exercise and a partial bodyweight-assisted rep.

Structurally the DLATSF is built to full commercial spec: continuous four-side welded construction using heavy-gauge 2"x2", 2"x3", and 2"x4" 11-gauge high-tensile-strength steel tubing. The machine operates as a standalone station or as a modular component on Body-Solid's Pro Dual 3-Stack and 4-Stack Gym configurations.

Why Buy From Everything Gyms?

• Authorized Body-Solid Dealer: Your purchase is backed by the full manufacturer warranty, not a third-party policy.
• Ships Direct From Body-Solid HQ: Your equipment ships from Body-Solid's warehouse near Chicago — the same place it ships from when you buy direct.
• Free Shipping Nationwide: No hidden freight charges on this or any order.
• Price Match Guarantee: Find it cheaper somewhere else? We'll match it.
• Manufacturer-Backed Warranty: Your purchase is registered with Body-Solid for the full warranty applicable to this product line — see Warranty section below.

Specifications

• Model: DLATSF
• Series: Pro Dual (full commercial)
• Mainframe: 2"x2", 2"x3", and 2"x4" 11-gauge high-tensile steel tubing
• Construction: Continuous four-side welded
• Cable System: No-cable-change dual-function (lat pulldown + seated row)
• Pulley: High pulley directly overhead for isolation
• Pull-Down Bar: Extra-long; wide / medium / narrow grip
• Stability: Adjustable hold-down pads
• Modular Use: Standalone or as component of Pro Dual 3-Stack / 4-Stack Gyms
• Warranty: Body-Solid Pro Dual lifetime warranty (frame and structural)
• SKU: DLATSF (also marketed as DLAT-SF)

Buying from Everything Gyms

Everything Gyms is an authorized Body-Solid dealer based in Atlanta. Every order is registered with the manufacturer for warranty coverage, ships free nationwide via freight, and is supported by our team for setup questions, warranty claims, and parts. We stock replacement parts and accessories for this product line where available.

Warranty

This machine is part of Body-Solid's Pro Dual line and carries Body-Solid's lifetime warranty on the frame, welds, and structural components. Refer to Body-Solid's warranty documentation for the most current terms on bushings, pads, cables, and finish.
