By Henry · Everything Gyms · Updated May 2026
TL;DR
The safest way to move a power rack is to disassemble it — unbolt the top crossmembers and side panels, walk the uprights through doorways individually, and reassemble at the new location. A 4-poster rack typically weighs 200–400 lb assembled and 50–80 lb per upright disassembled. Renting a 600 lb-rated furniture dolly, recruiting a second person, and budgeting 60–90 minutes per relocation will save you a herniated disc and a broken rack. Re-anchor and re-level at the new spot before loading any plates.
Why this matters

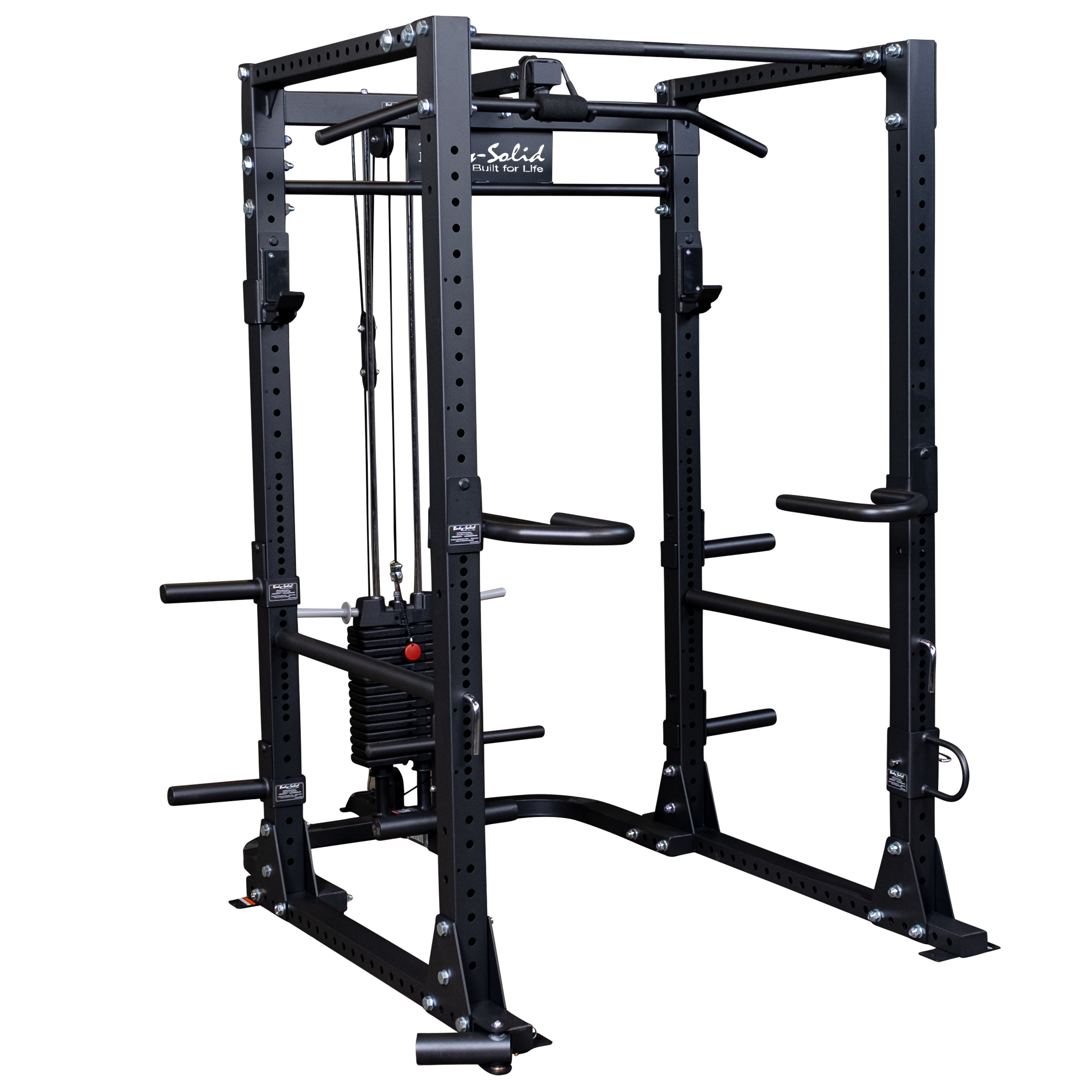

A power rack is the heaviest piece of equipment in most home gyms. The Body-Solid GPR400 weighs around 285 lb assembled, the SPR1000 Pro Clubline is heavier still, and the PPR1000 is lighter but still awkward to carry whole. Trying to drag, slide, or wrestle a rack across a floor is the fastest way to: crack your slab, snap a weld at a J-cup hole, tear up the floor under the feet, drop the rack onto someone's foot, or ruin the doorway you're trying to fit it through. Doing it right takes longer than doing it wrong — and it's the only way that ends with the rack still working and everyone uninjured.
Before you start: tools and prep
Have all of this on hand before you touch a single bolt:
- Two people. This is non-negotiable. Even a partially disassembled rack has uprights that exceed safe one-person carrying load.
- Furniture dolly rated for at least 600 lb. Four wheels, not two.
- Moving straps (forearm forklift-style shoulder straps). These transfer load from your back to your legs.
- Sockets and wrenches in the sizes called out by your rack's manual (commonly 3/4" and 9/16" for Body-Solid).
- Allen key set if your rack uses any hex hardware.
- Painter's tape and a Sharpie for labeling bolts and panels.
- Zip-top bags for each bolt group (top frame, side panels, feet).
- Furniture sliders for short slides across hard floors without lifting.
- Work gloves with grip.
- Doorway and stair measurements taken before the day of the move.
- Drill, masonry bit, and concrete anchors if the rack was previously anchored.
- Bubble level for re-leveling at the new spot.
Set aside 60–90 minutes for a typical residential rack move. Add 30 minutes for stairs or anchor removal.
Step-by-step: how to move a power rack safely
Step 1 — Strip the rack
Remove every accessory and attachment first. J-cups, safety arms or straps, dip bars, lat attachments, weight pegs, band pegs, the pull-up bar handles — all of it. Put each set in a labeled zip-top bag. The rack should be reduced to its frame: uprights, crossmembers, and feet.
Step 2 — Decide: roll or disassemble
Two valid approaches.
- Roll it whole — Only safe if the move is within the same room or down a level hallway, every doorway is wide enough (most are not: a typical rack is 48–52" wide and most interior doors are 30–32"), and the floor is hard and even. Lift one end onto a dolly, tilt the rack carefully, and walk it. Requires two people minimum.
- Disassemble — The right call for any move that involves doorways, stairs, vehicles, or another room. Takes 30–45 minutes; saves you from a pinched hand and a destroyed door frame.
If in doubt, disassemble. The 30 minutes you spend with a socket wrench is shorter than the time it takes to patch a torn door jamb.
Step 3 — Loosen anchor bolts (if applicable)
If the rack is bolted to concrete or a wood subfloor, remove the anchors before doing anything else. For concrete wedge anchors, you typically need to thread the nut off, then cut the protruding stud flush with the slab or break it sideways with a sledge (the anchor is a sacrificial part). For wood lag bolts, just back them out. Keep a vacuum handy for the dust.
Step 4 — Mark and disassemble (if disassembling)
Disassemble in the reverse order of the assembly manual. Most racks come apart in this sequence:
- Pull-up bar and any top crossmembers.
- Upper rear stabilizers.
- Lower rear stabilizers and front feet.
- Uprights last — they're the heaviest single pieces.
Mark each upright with painter's tape and a number (1, 2, 3, 4) as you remove it. Mark the crossmembers with their position (front-top, rear-top, front-bottom, rear-bottom). Bag each crossmember's bolts and tape the bag to the corresponding piece so you can't lose them.
One person should always be supporting the rack while another loosens hardware. As you remove crossmembers, the structure becomes progressively less stable — do not walk away from a partially disassembled rack.
Step 5 — Load onto the dolly
Carry each piece to the dolly. Use moving straps for the heaviest uprights — a typical 4-poster upright weighs 50–80 lb. Stack uprights flat on the dolly with crossmembers laid alongside. Strap everything down to the dolly with a ratchet strap so nothing slides during the move.
Step 6 — Navigate doorways
Doorways are where rack moves go wrong. The rules:
- Carry uprights vertical and one at a time — never two at once.
- Lead with the foot end. The upright base flares slightly on most racks; if you lead with the top you'll catch the jamb.
- Pivot at the door, don't push.
- Lay a moving blanket over the door jamb to protect the wood if you're brushing it close.
If a doorway is too narrow for the rack base feet, the feet are usually removable independently of the uprights — unbolt them and carry separately.
Step 7 — Navigate stairs
Stairs require an additional planning step.
- Never use a wheeled dolly on stairs. Use a 4-wheeled appliance dolly with a stair strap or hand-carry.
- Three points of contact. Each carrier keeps two hands and one foot, or two feet and one hand, in contact at all times.
- Heavy person below. The person below carries the bulk of the load on stairs, with the upper person guiding.
- One step at a time. Communicate every move. "Stepping down... now."
- Switchbacks. Plan how the longest single piece will turn at any stair landing. An 84" upright will not turn in a 36" landing without going vertical.
Step 8 — Load into the vehicle (if moving between addresses)
Lay uprights flat. Pad them with moving blankets. Strap to anchor points. Crossmembers go alongside, not on top — painted finishes scratch when steel rubs against steel under road vibration. If you're loading into a pickup, run a tarp across the top to keep dust and rain off.
Step 9 — Plan the new location before unloading
At the destination, before any rack pieces leave the vehicle, plan three things:
- Final position. Mark the four foot positions on the floor with painter's tape. Account for at least 6–12" clearance behind the rack and 24" in front for plate loading.
- Ceiling clearance. Most racks need 84–93" of clear ceiling for the pull-up bar plus standing room above the bar.
- Anchor strategy. If you'll re-anchor, identify where the anchors will go and what subfloor you're hitting. Mark with tape.
Step 10 — Reassemble in reverse order
Reverse the disassembly sequence. The order matters: install the rear stabilizers and feet first to create a stable U, then the uprights, then the top crossmembers, then the pull-up bar and any accessories. Bolts go in hand-tight first across the whole rack; only after every bolt is started do you go back and torque to spec.
Step 11 — Re-anchor (if applicable)
If the new location calls for anchoring, drill the holes through the foot anchor points using a hammer drill with a masonry bit (for concrete) or a wood bit (for plywood subfloor). Set wedge anchors per the rack manufacturer's instructions — typically 1/2" or 3/8" wedge anchors with a minimum 3" embedment in concrete. Torque to the anchor's published spec.
Step 12 — Level and load
Place a bubble level across the top crossmember left-to-right and front-to-back. If the rack rocks, shim under the high foot with thin steel or hard-plastic shims until all four feet bear load evenly. A rocking rack will fatigue welds over years of use.
Reattach all accessories (J-cups, safety arms, dip bar). Load a light barbell with no plates and rack it on the J-cups to confirm everything moves freely. Only then load working weight.
Hazards and how to avoid them
- Pinch points. The biggest pinch hazard is between an upright and a crossmember during reassembly. Always keep fingers above or below the bolt path, never wrapped around the edge.
- Dolly weight cap. A standard 4-wheel furniture dolly is rated 600–1000 lb. An assembled commercial rack can exceed that; always check the rating sticker.
- Tip-over. A partially disassembled rack is top-heavy. Never walk away from one during disassembly.
- Back injury. Heaviest single piece is usually an 84" upright at 50–80 lb. Use straps; use leg drive; keep the load close to your center of mass.
- Stair fall. The number-one moving injury. Use a stair-rated appliance dolly with a strap, or carry one upright at a time with both hands.
- Concrete dust. When you cut wedge anchors flush, wear eye protection and a mask. Silica dust is no joke.
- Cross-threaded bolts. If a bolt fights you going in, back it out. Forcing a cross-thread will destroy the receiving hole and ruin the rack at that joint.
Special cases
Moving a Smith machine
Smith machines have the additional consideration of the slide rails and counterweights. Disassemble the bar carriage, secure the counterweight cable, and treat the rails as fragile precision components — a bent rail makes the entire machine useless. Call (678) 637-9375 for guidance on specific Body-Solid Smith machine models before disassembly.
Moving a half rack
Half racks (2-post + a single back stabilizer) move similarly to full power racks but are usually lighter and less stable in the partially disassembled state. Add extra bracing by leaving the lower crossmember in place until the very end.
Moving a rack with a lat attachment
Remove the lat attachment first. The cable, pulleys, and weight stack are the most vibration-sensitive parts of the entire setup. Pack them separately and treat them like glass.
FAQ
How much does a power rack weigh? Residential racks like the Body-Solid PPR1000 weigh around 150–200 lb assembled. Light-commercial racks like the GPR400 are 250–300 lb. Full-commercial racks like the SPR1000 are 400–500 lb. Individual disassembled uprights are typically 50–80 lb each.
Do I need to disassemble my power rack to move it? If the move involves any doorway, staircase, or vehicle transport, yes. Doorways are usually 30–32" wide and a rack is 48–52" wide assembled. Within the same room on a flat floor, you can sometimes roll a rack on a dolly with two people.
Can one person move a power rack? No. Even a fully disassembled rack has uprights that exceed safe one-person carrying load for repeated lifts, and partially disassembled racks are unstable. Plan for two people minimum.
What size dolly do I need for a power rack? A 4-wheel furniture dolly rated for at least 600 lb. For commercial racks like the SPR1000, look for 1000+ lb-rated dollies. Stair-capable appliance dollies are better if the move involves any steps.
Do I need to re-anchor my rack at the new location? Most residential power racks do not require anchoring, but anchoring increases stability and reduces vibration during heavy lifts. If your original location was anchored and the new one supports it, re-anchor. If you're on a wood subfloor or moving frequently, leave it freestanding.
How do I get a power rack down stairs? Disassemble first, carry one piece at a time, two people minimum. Heavy person below, three points of contact at all times, communicate every step. Never use a wheeled dolly on stairs — only stair-rated appliance dollies with straps.
Will moving my Body-Solid rack void the warranty? Body-Solid's in-home lifetime warranty covers the original purchaser in normal residential use. Damage caused during a move (bent uprights, cross-threaded hardware, scratched finish) is not covered. Disassemble carefully and you'll avoid any warranty question.
