How to Measure Your Space for Gym Equipment

By Henry · Everything Gyms · Updated May 2026

TL;DR

Before you buy any home gym equipment, measure six things: ceiling height (8 ft minimum for most racks, 9 ft for overhead pressing), floor footprint plus 4 ft of clearance in front and 2 ft behind, doorway width (32" minimum for most racks delivered assembled), stair or elevator dimensions, electrical outlet locations for cardio, and HVAC clearance. Spec sheets list the assembled dimensions of equipment, but the dimension that matters is the assembled-plus-clearance footprint — plate loading, accessory swing radius, and walk-around space.

Why people get this wrong

The most common home gym mistake isn't picking the wrong rack — it's picking the right rack and discovering at delivery that the ceiling is 7'10", the doorway is 30", or the basement stairs have a switchback that the uprights can't navigate. Every week we field a call from someone who measured the floor but not the ceiling, or measured the rack footprint but forgot they need 30" in front of it to load plates.

The good news: 20 minutes of pre-purchase measurement prevents 100% of these disasters. This article gives you the exact checklist.

The six measurements that matter

1. Ceiling height

Almost every other measurement is forgiving. Ceiling height is not. You cannot add ceiling.

How to measure: use a laser distance meter (cheap on Amazon, $30–60) pointed at the ceiling from the floor. Measure in at least three spots — ceilings sag, slope, and have ductwork. The lowest reading is the one that counts.

For overhead pressing specifically: stand in the position where the bar will be, hold a broom handle vertically overhead with locked elbows, and verify clearance above the broom handle. That's your real minimum.

Add a finger-width safety margin if your gym is in a finished basement — popcorn ceiling, drop tile, or exposed insulation eats inches you'll never get back.

2. Floor footprint and clearance

Equipment spec sheets list the bare assembled footprint — say, 47" x 47" for a power rack. That's not the space you need. You need:

• The equipment footprint (per the spec sheet).
• Front clearance for plate loading, J-cup access, and walking the bar out — 24" minimum, 36" comfortable.
• Rear clearance for safety arms, walk-around, and any rear-mounted accessory — 12" minimum, 24" comfortable.
• Side clearance for accessories that extend laterally (lat pulldown handles, dip bars) — 12" minimum on the accessory side.

A typical power rack like the Body-Solid GPR400 has a 47" x 47" base. With clearance, plan for an 8 ft x 8 ft zone at minimum, or 10 ft x 10 ft to lift comfortably.

How to measure: tape out the full assembled-plus-clearance zone on the floor with painter's tape before buying. Walk it. Lay down on it. Practice the lift positions inside the taped square. If you feel cramped, the rack will too.

3. Accessory swing radius and pulley extension

The big sleeper. Most racks don't tell you the swing radius of a lat pulldown bar, the deployment depth of a cable extension, or the arc that dip bars need clear of obstruction. Some examples:

• Lat pulldown bar (48" wide) attached to a rack-mounted attachment swings approximately 4 ft across the front of the rack. Anything within that arc — a treadmill, a wall, a window — gets hit.
• Cable pulley extension on a functional trainer can swing the cable 360 degrees around the column. Plan for a 7 ft circle of clear floor around the column.
• Dip bar attachment on a rack extends 18–24" forward from the rack uprights. Combined with your bodyweight swinging during dips, plan 4 ft of clear floor in front.
• Smith machine bar travels its full vertical rail. Some bars rotate 180° at the bottom to disengage — that rotation needs clear arc on both sides.

How to measure: ask us for the accessory dimensions before you order. Or, if you're already assembled, measure the actual swing radius in place before adding other equipment nearby.

4. Doorway and access width

The dimension that turns a great rack purchase into a return.

• Most interior residential doors: 30–32" wide.
• Most exterior residential doors: 36".
• Most basement doors: 28–30" — the tightest in the house.
• Garage to basement-stair doors: sometimes as narrow as 24".

Equipment access widths:

• Power rack (disassembled in box): usually fits through any 30" door. Box dimensions vary; ask for them.
• Multi-station gym (boxed): typically multiple boxes, individual boxes generally fit 30" doors, but check the longest box dimension.
• Treadmill (assembled, folded): 32–34" wide is typical — a tight fit for many basement doors. Ask for the folded-and-tilted dimension.
• Functional trainer (column): the column is often the dimension limit — may exceed 36" depending on the model.

How to measure: open the door fully, measure between the door stop on one jamb and the door's hinge edge on the other. That's the real opening width.

Bonus: measure the door height too. Most are 80", but older homes can have 76" doors that trip up tall boxes.

5. Stair and elevator access

The route from the truck to the gym matters more than the gym itself when delivery day comes.

• Stairway width at the narrowest point — some have handrails that pinch the usable width to 28".
• Stairway head clearance — the diagonal vertical clearance for an 84" upright through a stairwell. Most basement stairs are 7 ft head height; a 7 ft upright won't make a 90° landing turn.
• Landing turn radius — the longest piece that has to turn at a landing. An 84" upright needs a landing depth of at least the upright length.
• Elevator car dimensions — width, depth, and door height. Standard apartment elevators are 5'8" tall x 4' wide — watch the 5'8" if your equipment box is over that.

How to measure: walk the route from your front door to the final gym location holding a 7 ft piece of PVC pipe or a 6 ft 2x4. If you can't get the pipe through, the rack won't fit either.

6. Electrical, HVAC, and floor protection

Often-overlooked, but they affect placement.

• Outlets for cardio — treadmills, ellipticals, and powered cables need 120V outlets within 6 ft of the equipment. Ideally on dedicated 15A circuits.
• HVAC vents — don't park the rack under a return vent (dust raining onto chrome) or directly over a floor vent (blocking airflow).
• Window clearance — don't put a barbell path within 3 ft of a window. One mis-rerack and you're calling a glazier.
• Floor type — see our flooring guide for the right thickness under the equipment you're planning.

Step-by-step: how to measure your gym space

1. Walk the entire delivery route. From the curb to the final gym spot, mentally rehearse the moving party carrying a 7 ft upright. Identify every pinch point.
2. Measure the doorways on that route. Note the smallest.
3. Measure stair widths and landing depths. If there's a switchback, measure the diagonal clearance for the longest equipment piece.
4. Measure ceiling height in three spots in the gym room. Take the lowest.
5. Measure the gym floor — length, width, and any obstructions (water heater, HVAC equipment, structural columns).
6. Tape out the equipment footprint plus clearance on the floor in painter's tape. Walk it.
7. Verify accessory swing radius for any cable, lat, or dip attachment you'll add.
8. Check electrical outlet locations. Mark each on the floor with tape.
9. Verify HVAC vent locations. Adjust the planned layout to keep airflow clear.
10. Photograph everything. Email or text to whoever you'll buy from — sometimes a sales person spots a problem you'll miss.

Printable pre-purchase checklist

Print this and fill it out before you order. Bring it to the phone call.

Common space surprises

• Drop ceilings eat 4–6 inches. Measure from the floor to the actual ceiling tile, not the structural deck above.
• HVAC ducts cross the room. A duct running through the middle of a 9 ft basement creates a 7 ft sub-zone that no overhead lifter can use.
• Floor joists flex. If your gym is on a second story, the floor flexes during heavy lifts. Position the rack over a load-bearing wall or directly over joists.
• Basement stair switchbacks. The most common rack-delivery failure point. A switchback with a 36" landing will not accept an 84" upright unless the upright goes nearly vertical — which often hits the upper ceiling of the stairwell.
• Walk-out basement low headers. Many walk-out basements have a header beam above the exterior door that's lower than the rest of the ceiling. Measure it specifically.

How we use these measurements

When you call us at (678) 637-9375, we ask for these six measurements before we recommend equipment. Three reasons:

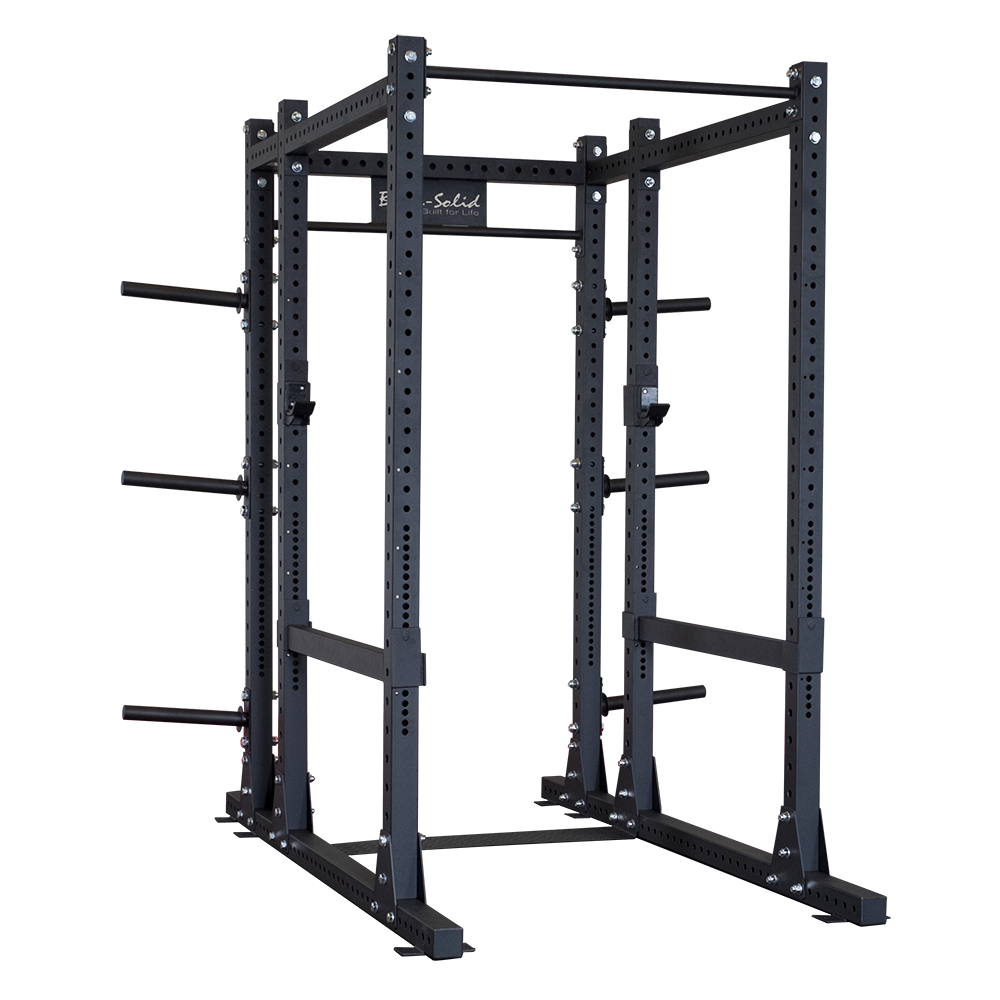

1. It changes which models will fit. A 92" tall rack like the SPR1000 won't go in a 7'10" ceiling; a shorter PPR1000 probably will.
2. It changes which accessories work. A lat pulldown attachment that swings 4 ft in front needs that clear.
3. It changes delivery logistics. We can flag freight delivery vs in-home delivery, and disassembly needs, based on your access route.

FAQ

What is the minimum ceiling height for a home gym? 7 ft 6 inches will fit most racks without the pull-up bar in use. 8 ft is comfortable for a rack with pull-ups. 9 ft is the minimum for standing overhead pressing with full lockout, and 9'6"–10 ft is needed for standing snatch or jerk.

How wide does a doorway need to be for a power rack? Most power racks ship disassembled in boxes that fit a 30" doorway. Assembled racks are 47"+ wide and will not fit through any standard residential door. Always disassemble before moving through doorways.

How much clearance do I need around a power rack? 24"–36" in front for plate loading and bar walkout, 12"–24" behind for safety arms and walk-around, 12" on any side with accessories. A 47" x 47" rack works comfortably in an 8 ft x 8 ft taped zone.

Can I put a power rack in a 7-foot ceiling? A short rack like the Body-Solid PPR1000 will fit, but you will not be able to do pull-ups from the bar or any overhead pressing. Consider a half rack or a Smith machine with overhead clearance designed for low ceilings.

How do I measure for a Smith machine? The Smith machine's overall height is the constraint — typically 84"–90". Measure floor-to-ceiling clearance and add 4 inches for safety. Some Smith bars also need vertical travel above the user's head for the start position, so add user height + bar grip height to the math.

What if my basement stairs have a switchback? Measure the landing depth and the stair width at the narrowest point. An 84" upright needs a landing depth at least equal to the upright length (often impossible in residential stairs). The workaround is to disassemble the rack into shorter pieces and carry one at a time — see our power rack moving guide.

Should I measure for a treadmill differently? Yes. A treadmill needs its assembled footprint plus 36" of clear space behind for safe step-off, plus the user's height plus 6 inches of head clearance at the highest deck position (full incline). Folded treadmills also need a tip-up clearance — measure that for storage.
